1.
T
ur
n the wheelbarrow over and set it on a flat
sur
face. (see Fig. 1)
2.
Loosen the axle bracket retaining bolt with a
spanner

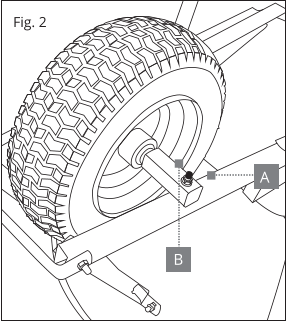

(see Fig. 2: A). Set the nuts and bolts aside
3.
Slide the axle (see Fig. 2: B) out of the old wheel
and brackets. The axle should slide out easily
, but a
light squir
t of WD-40 may be required loosen a
sticking axle
4.
Slide the axle through the hub of the new wheel
assembly and fit the brackets over the ends.(see
Fig. 2: B)
5.
Fit the new wheel between the front braces so the
hole in the axle brackets lines up with the holes in
the handles
6.
Push the bolt through the holes in the handles and
the hole in the axle bracket
7.
Put the retaining nut back into position. T
ighten to
secure the axle and wheel
